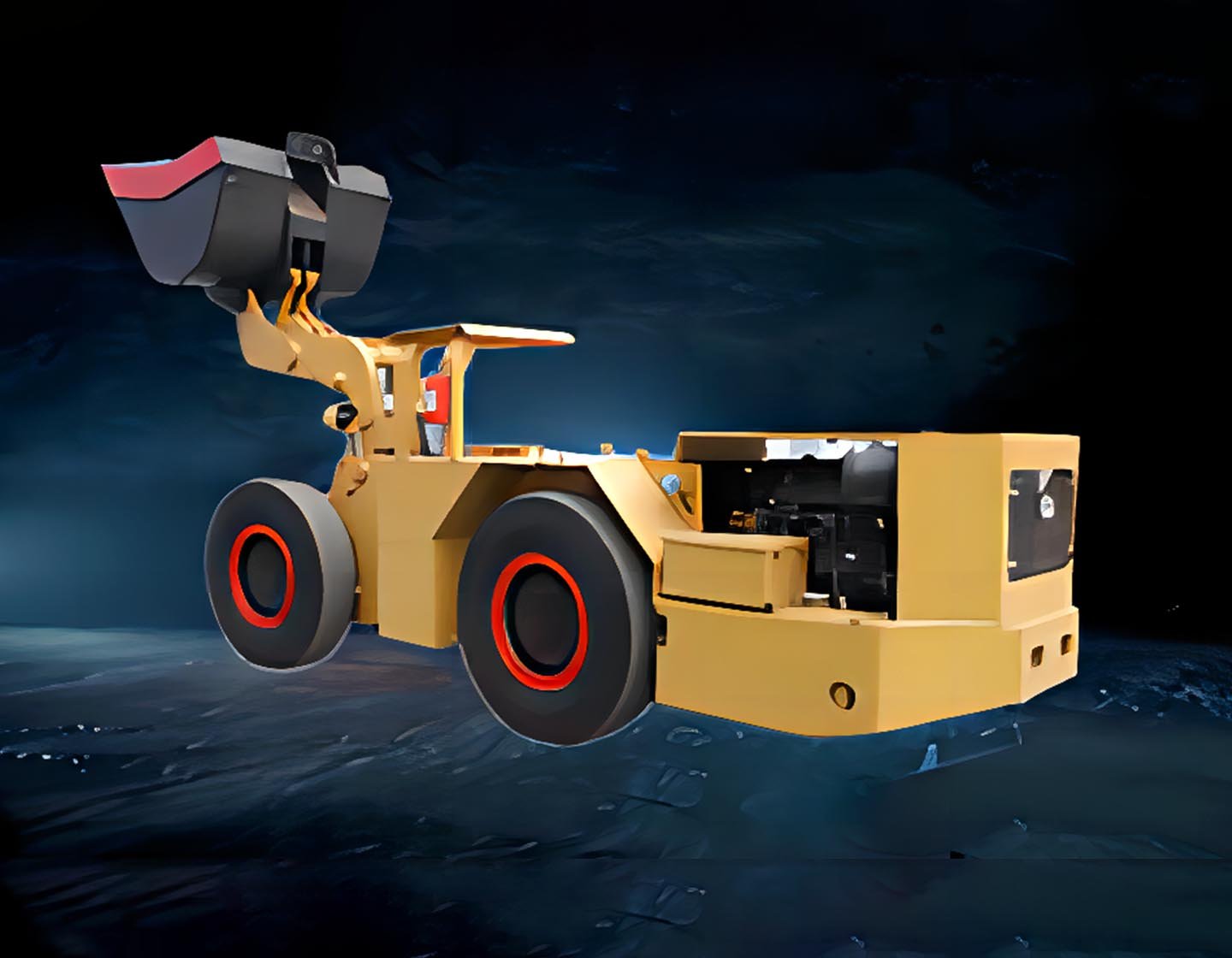

TL203N underground loader is a kind of diesel engine driven equipment with low body, hydraulic mechanical transmission, hairpin frame, tire walking and front dump bucket. It is narrow type model specially for narrow tunnel.It can be loaded, transported and unloaded independently by a single person. It is suitable for ore extraction and roadway excavation of mining methods such as staged caving, open stoping, room pillar, shrinkage, and layered filling, as well as for railway,highway, water conservancy and other tunnel projects.
TL203N underground loader has a rated bucket capacity of SAE 1.5 m yard, a rated load of 3.2 t, and is suitable for 3mx3m tunnel; It is characterized by compact structure, convenient operation, low energy consumption, low noise, high protection level, good power performance, low operation cost, high production efficiency, etc. It is a new equipment for upgrading small-sized underground mines or underground projects.
| Model | TL203N |
| Operation Weight(kg) | 9000 |
| Rated Load(kg) | 3200 |
| Buckey Volume(m3) | SAE 1.5 yard |
| LxWxH(mm) | 6010 x 1450 x 2050 |
| Rear Axle Oscillation Angle(°) | ±8° |
| Max.Shoveling Force(kN) | 102 |
| Max.Traction Force(kN) | 104 |
| Turning Radius(mm) | 2700/5200 |
| Max.Dump Height(mm) | 1432 |
| Dump Angle(°) | 40 |
| Chassis Steering Angle(°) | 40 |
| Max.Speed(km/h) | 9.5 |
| Approach Angle/Departure Angle(°) | 15 |
| Ground Clearance(mm) | 220 |
