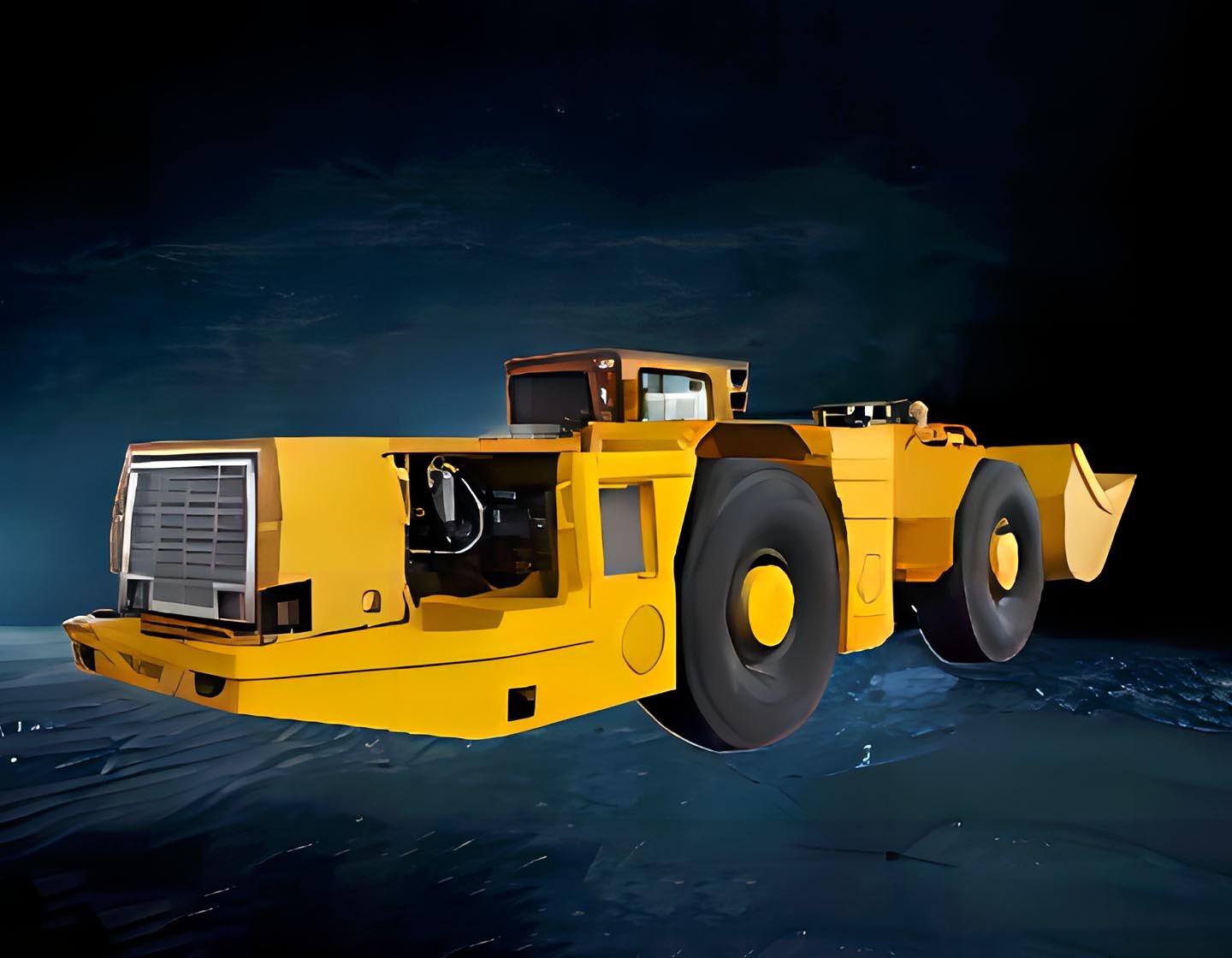

TL410 underground loader LHD is a kind of underground LHD that is suitable for shoveling, transportation and unloading of non explosive environment mine tunnel section (4.1mx4.1m) tunneling and other small tunnel materials, and meets the requirements of mine safety certification. The rated bucket capacity is 4m3, the rated load is 10t, and the technical level has reached the international advanced level.
TMG is committed to the production of underground mining equipment and engineering equipment, providing integrated solution of equipment and technology.
TMG -China Reliable Underground Mining Machinery Manufacturer, High Efficiency,Safety,Reliable.
TMG LHD series: Diesel LHD 1 ton to 17 ton;electrical LHD 6 ton to 14 ton;battery pure-electricity power LHD ; explosion proof LHD 2 ton-14ton.
New product, we have been developing battery type available.
| Underground Loader Model NO. | TL410 |
| Power Type | Diesel |
| Bucket Capacity | 3.8m³ |
| Payload | 10 T |
| Rated Power/Speed | 170kW@2300rpm /186kW @ 2000rpm (224 kW@2100rpm) |
| Machine Weight (empty loading) | 16600KGS |
| Machine Weight (full loading) | |
| Overall Dimension(mm) | 9500x2550x2390 |
| Grade ability | ±25%, 14° |
| Dump Height(mm) | 1871 |
| Ground Clearance(mm) | 394 |
| Rear axle oscillation Angle | ±8° |
| Track Width(mm) | 1940 |
| Steering Angle | ±42° |
| Inner Turning Radius | 3278 mm |
| Outer Turning Radius | 6573 mm |
| Engine (Brand Model) | Deutz F10L413 CUMMINS / QSL9 C250 (Option OMZ926LA) or BF6L1013EC |
| Engine Cooling Type | Water cooled |
| Rated Power/Speed | 170kW@2300rpm /186kW @ 2000rpm (224 kW@2100rpm) |
| Transmission (Model) | DANA / R36429 |
| Axle Brake(Model) | NO‐SPIN Differential |
