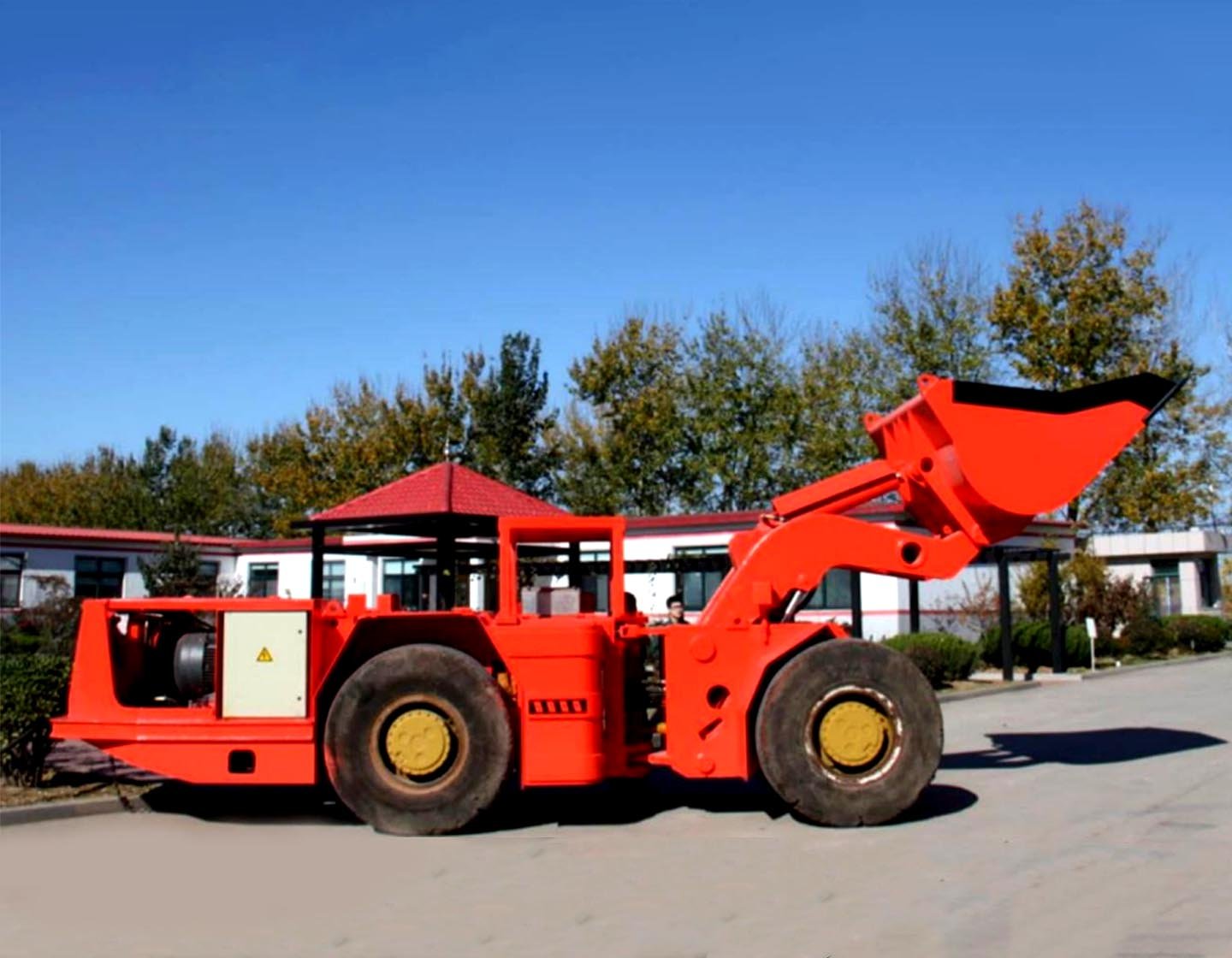

It adopts cable power supply mode, zero emissions, low noise, suitable for underground environments with limited ventilation conditions. With a load capacity of 6 tons, equipped with a large capacity bucket and high torque drive system, it can quickly complete the loading and transportation of ore and waste residue. The compact body structure and articulated steering design support a minimum turning radius of ≤ 5 meters in tunnels, making it suitable for narrow and multi cornered work spaces. The key components are made of explosion-proof and corrosion-resistant materials, equipped with multiple safety protection systems (such as overload protection, emergency braking, collision warning), ensuring stable operation in high humidity and dust environments. They are widely used in underground mining scenarios such as metal mines and coal mines, significantly improving material handling efficiency.
| Model | TL306E |
| Operation Weight(kg) | 17237 |
| Rated Load(kg) | 6500 |
| Buckey Volume(m3) | 3 |
| LxWxH(mm) | 8600x2160x2760 |
| Rear Axle Oscillation Angle(°) | ± 10° |
| Max.Shoveling Force(kN) | 76 |
| Max.Traction Force(kN) | 79 |
| Turning Radius(mm) | 2897/5700 |
| Max.Dump Height(mm) | 1500 |
| Dump Angle(°) | 40 |
| Chassis Steering Angle(°) | 40 |
| Max.Speed(km/h) | 18 |
| Approach Angle/Departure Angle(°) | 15 |
| Ground Clearance(mm) | 295 |
