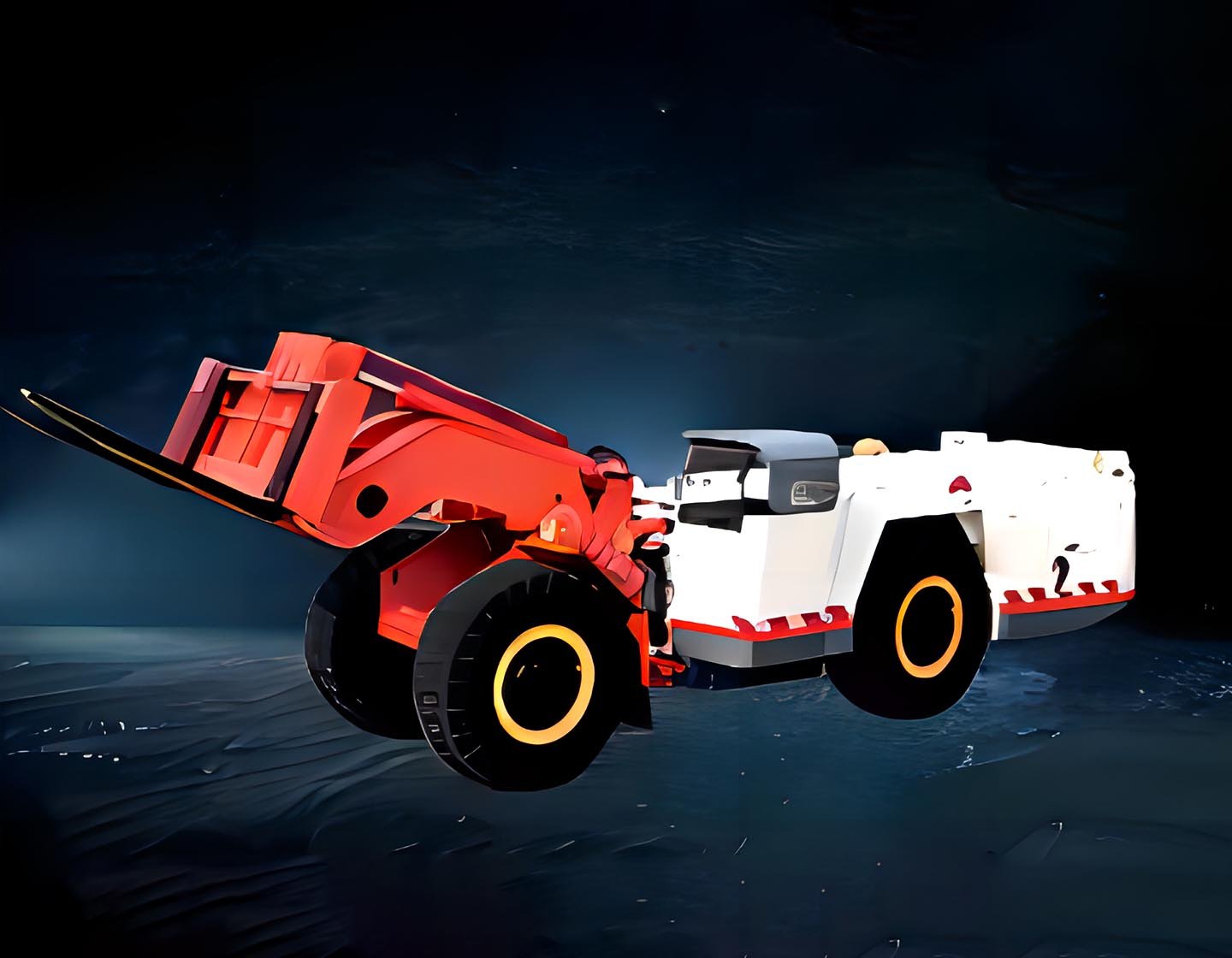

TL15FB is an explosion-proof machine specially applied for underground explosion-proof demand scenarios, such as coal mines.It has multifunctions with various attachments like loader, fork,plate, rated load of 15 t. It is characterized by strict safety, compact structure, convenient operation, low noise, high protection level, good power performance, low operation cost, high working efficiency, etc.
Working condition requirement:
Around Temperature: （-20℃～+40℃）
High-Land: Less than 2000m
Moisture: No more than 85% humility @（+25℃）
Working in Gas environment
Design,Manufacturing and Inspection Standard:
Comply with GB and MT as well as International Standard. If Standerd conflict with each other we
follow up the Most strict standard.
| Model | TL15FB |
| Operation Weight(kg) | 25000 |
| Rated Load(kg) | 15000 |
| Overall Dimension LxWxH(mm) | 9770×2200×1992（bucket） |
| Overall Dimension LxWxH(mm) | 9500×2200×1992（Fork ） |
| Overall Dimension LxWxH(mm) | 9770×2200×1992（Plate ） |
| Max.Shoveling Force(kN) | 180 |
| Max.Traction Force(kN) | 213 |
| Turning Radius(mm) | 3350/6500 |
| Max.Dump Height(mm) | 2200 |
| Max.Discharge Distance | 2800 |
| Chassis Steering Angle(°) | 40 |
| Max.Speed(km/h) | 24 |
| Approach Angle/Departure Angle(°) | 15 |
| Ground Clearance(mm) | 365 |
