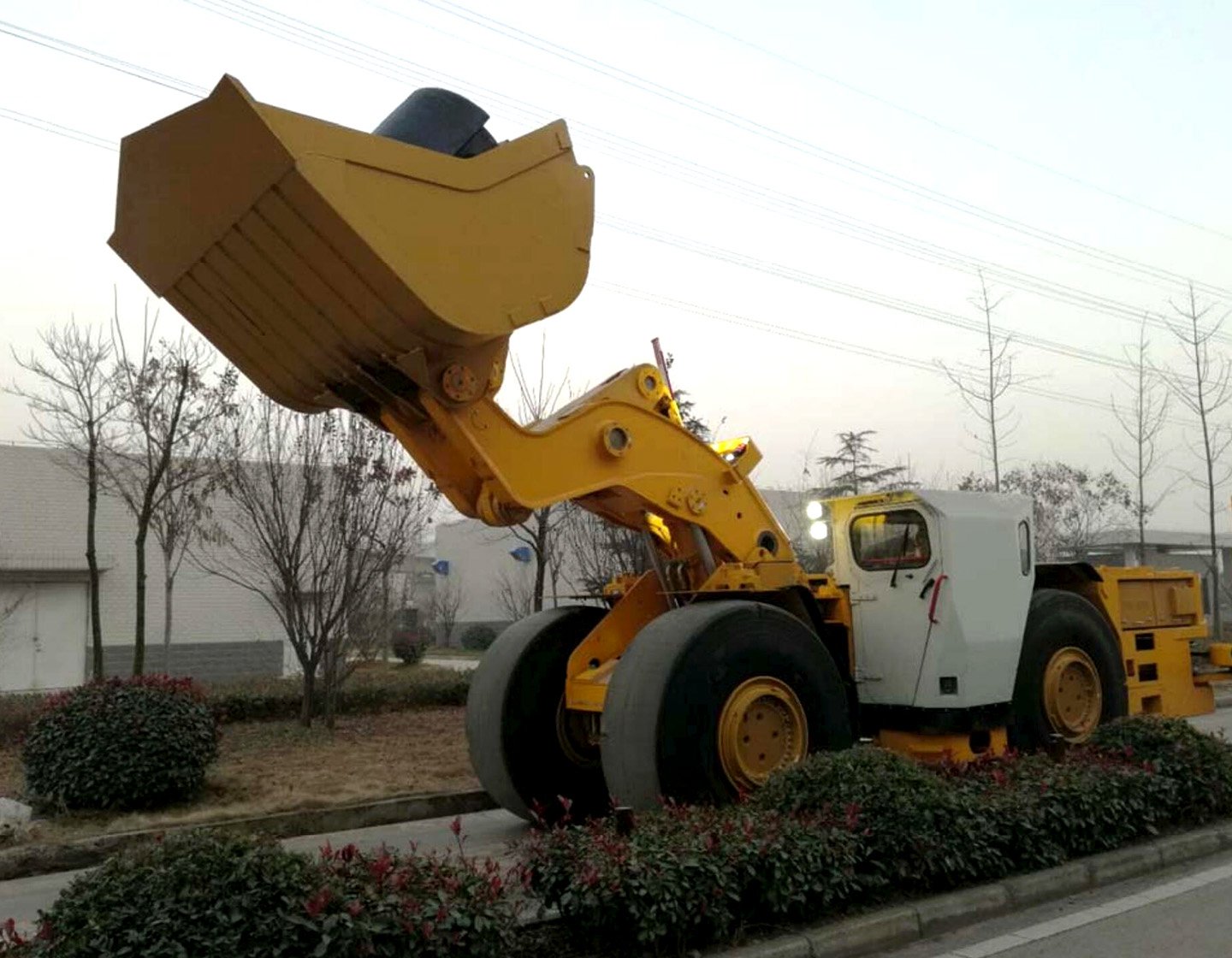

The TL514E underground cable loader is an efficient electric equipment designed specifically for heavy-duty working conditions in large underground mines, integrating functions of shoveling, transportation, and unloading. Adopting a high-power cable power supply system, with zero emissions and low noise, it meets the strict ventilation and environmental protection requirements of deep well mining. With a load capacity of 14 tons, equipped with a large capacity bucket and a high-strength hydraulic drive system, it can quickly complete the shoveling and transportation of high-density ores and waste rocks.
The TL514E underground cable loader is an efficient electric equipment designed specifically for heavy-duty working conditions in large underground mines, integrating functions of shoveling, transportation, and unloading. Adopting a high-power cable power supply system, with zero emissions and low noise, it meets the strict ventilation and environmental protection requirements of deep well mining. With a load capacity of 14 tons, equipped with a large capacity bucket and a high-strength hydraulic drive system, it can quickly complete the shoveling and transportation of high-density ores and waste rocks. The body adopts articulated steering and rigid chassis design, taking into account flexibility and heavy load stability, adapting to complex tunnels and long-distance transportation needs. The key components are made of explosion-proof and impact resistant materials, integrated with intelligent safety protection (such as load monitoring, automatic power-off, 360 ° obstacle avoidance system), ensuring long-lasting and reliable operation in high dust and high humidity environments. They are suitable for large-scale mining scenarios such as metal mines, significantly improving the efficiency of heavy material transportation and operational safety.
| Model | TL514E |
| Operation Weight | 38100 |
| Rated Load(kg) | 14000 |
| Buckey Volume(m3) | 5 |
| LxWxH(mm) | 10520x2775x2537 |
| Rear Axle Oscillation Angle(°) | ± 8° |
| Max.Shoveling Force(kN) | 230 |
| Max.Traction Force(kN) | 280 |
| Turning Radius(mm) | 3350/6870 |
| Max.Dump Height(mm) | 2400 |
| Dump Distance(from tire edge,mm) | 2522 |
| Dump Angle(°) | 40 |
| Chassis Steering Angle(°) | 42.5 |
| Approach Angle/Departure Angle(°) | 11 |
| Ground Clearance(mm) | 385 |
