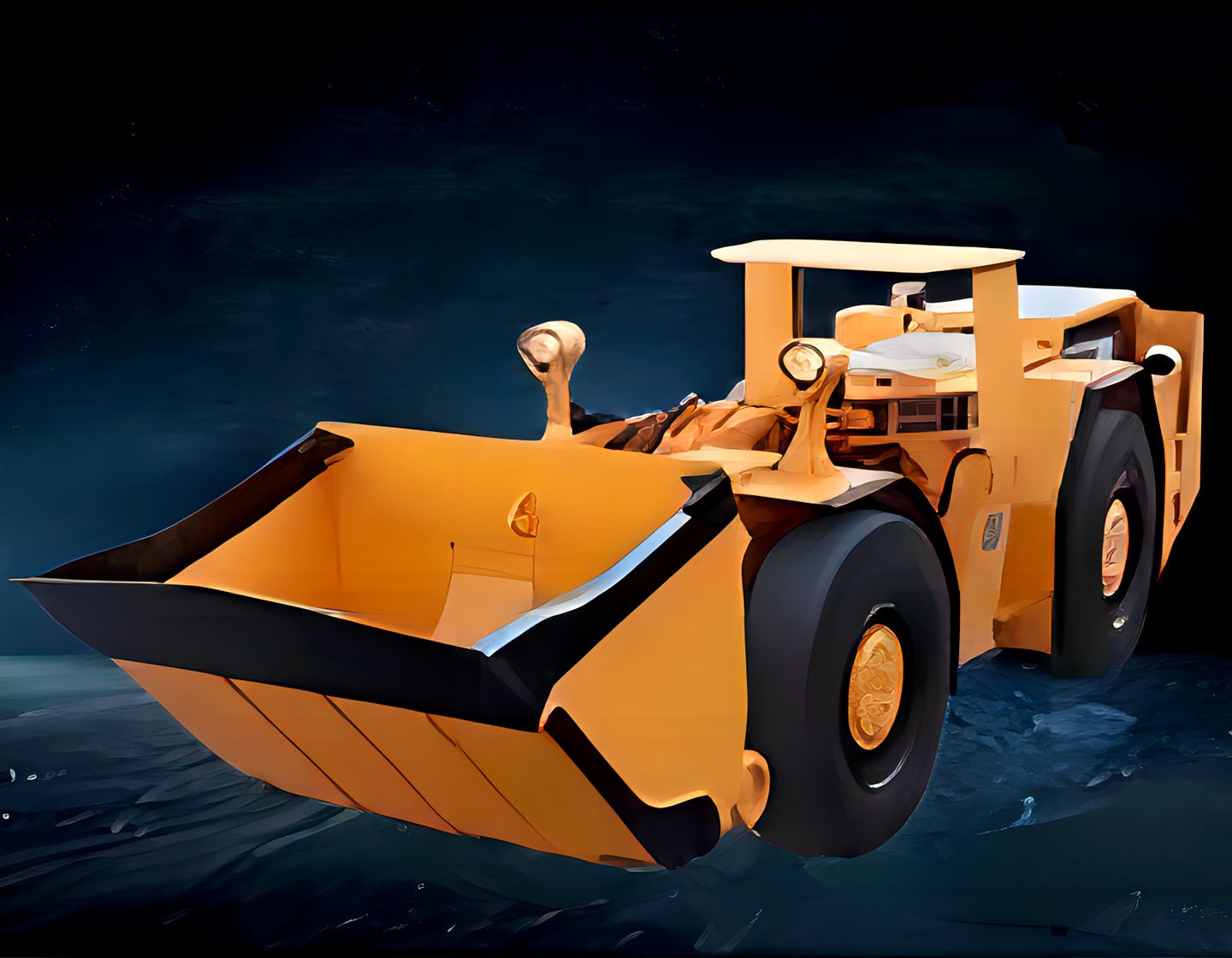

TL204 underground loader is a kind of diesel engine driven equipment with low body, hydraulic mechanical transmission, hairpin frame, tire walking and front dump bucket. It can be loaded, transported and unloaded independently by a single person. It is suitable for ore extraction and roadway excavation of mining methods such as staged caving, open stoping, room pillar, shrinkage, and layered filling, as well as for railway,highway, water conservancy and other tunnel projects.
TL204 underground loader has a rated bucket capacity of 2m3, a rated load of 4t, and is suitable for 3mx3m roadway; It is characterized by compact structure, convenient operation, low energy consumption, low noise, high protection level, good power performance, low operation cost, high production efficiency, etc. It is a new equipment for upgrading small and medium-sized underground mines or underground projects.
| Underground Loader Model NO. | TL204 |
| Power Type | Diesel |
| Bucket Capacity | 2m³ |
| Payload | 4 T |
| Rated Power/Speed | 63 Kw@2300 rpm/75Kw@2300rpm/85Kw@2300rpm |
| Machine Weight (empty loading) | 13000KGS |
| Machine Weight (full loading) | 17000KGS |
| Overall Dimension(mm) | 7000x1770x2050 |
| Grade ability | 20° (1st gear) |
| Dump Height(mm) | 1743 |
| Ground Clearance(mm) | 280 |
| Rear axle oscillation Angle | ±7° |
| Track Width(mm) | 1375 |
| Steering Angle | ±42° |
| Inner Turning Radius | 2500 mm |
| Outer Turning Radius | 4980 mm |
| Engine (Brand Model) | F6L912W / DEUTZ / Germany F6L914 or Deutz China or Perkins of Caterpillar 1104 Or Cummins QSB4.5 |
| Engine Cooling Type | Air cooled |
| Rated Power/Speed | 63 kW@2300rpm/75 kW@2300rpm/85 kW@2300rpm |
| Transmission (Model) | DANA / RT 20324 or RT32421 (Domestic Model BSX130) |
| Axle Brake(Model) | NO – SPIN Rigid Pplanetary Axle |
