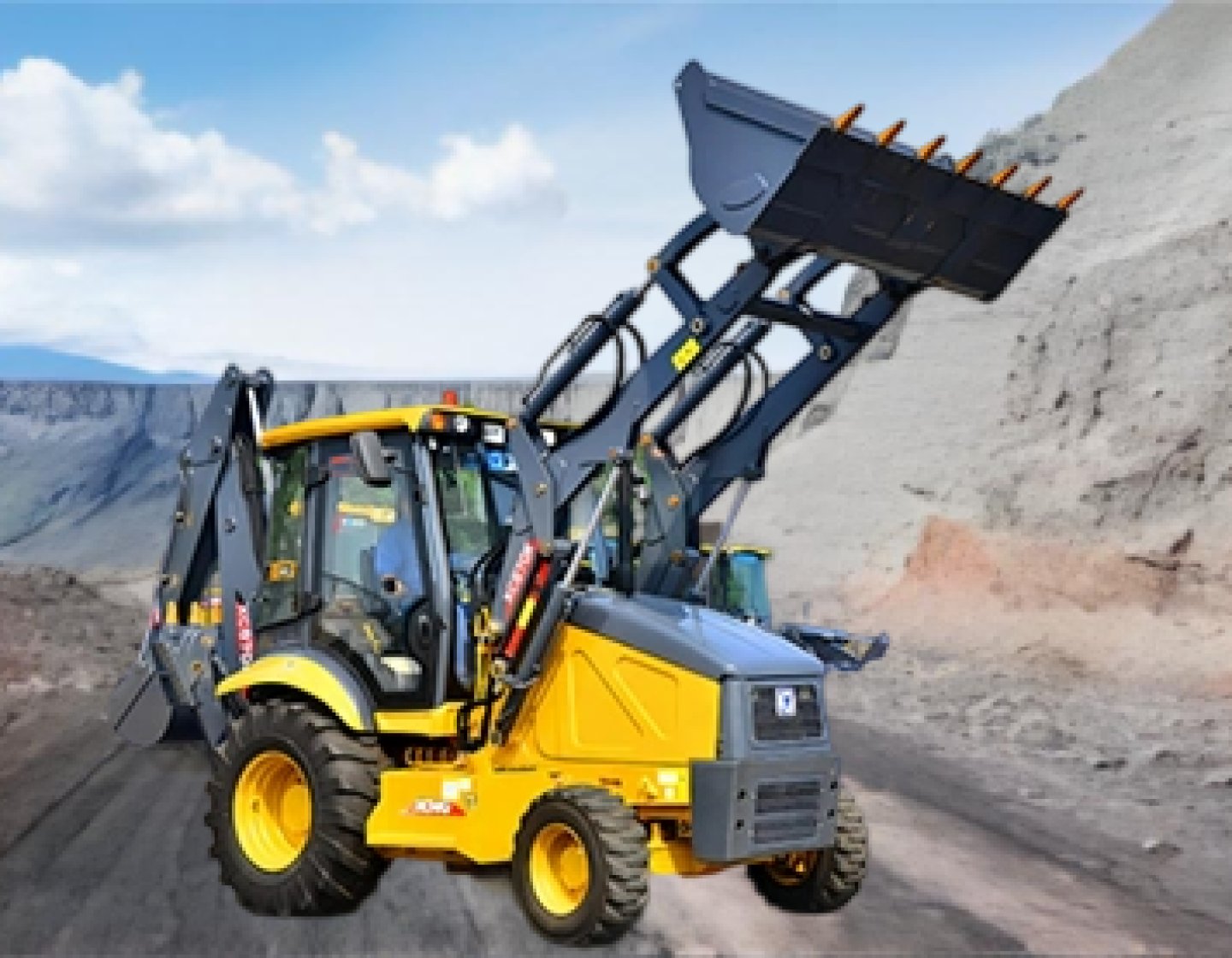

TMG series backhoe loader 870K adopt integral frame, and the whole machine has good stability and is more suitable for excavation work.
The excavating working derice is side shift type,high strength and good structual stability;the loading end working device adopts eight-bar linkage mechamism.
Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated axle walking.
Mining, loading function all lead control, light and flexible, high operating efficiency.
A variety of accessories can be selected to complete a variety of construction operations.
1. TMG is committed to the production of underground mining equipment and engineering equipment, providing integrated solution of equipment and technology.
2. TMG -China Underground Mining Machinery And Engineering Equipment Manufacturer, High Efficiency,Safety,Reliable.
3. TMG backhoe loader series products are widely applied in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
4. TMG backhoe loader products family: WM388,WM388T,WZ30-25, high reliability,high performance.
| Overall length | 7440/7280mm (Excluding bucket teeth) | Total weight | 7600kg | ||
| Overall width | 2350mm | Front wheel tread | 1880mm | ||
| Overall height | 3450mm | Rear wheel tread | 1784mm | ||
| Cab height | 2895mm | Minimum turning radius（Center of rear wheel） | 2935mm | ||
| Wheelbase | 2180mm | Minimum turning radius（Outside of front wheel） | 3665mm | ||
| Minimum ground clearance（Front axle） | 260mm | Minimum turning radius（Outside of bucket） | 5060mm | ||
| Front wheel width | 2190mm | Max. traction force | ≥70kN | ||
| Rear wheel width | 2280mm | Maximum gradeability (Departure angle) | 20° | ||
| Digging depth | 120mm | Maximum lifting height and lifting capacity | 32kN | ||
| Bucket retraction angle | 42° | Boom lifting time | ≤5S | ||
| Maximum dumping height | 2770mm | Total cycling time | ≤10S | ||
| Dumping range under maximum dumping height | 755mm | Dumping angle | 45° | ||
| Maximum working height | 4310mm | Maximum height of bucket pin | 3450mm | ||
| Rated load | 2500kg | Maximum breakout force (Bucket cylinder) | 66kN | ||
| Boom breakout force | 48kN | Bucket capacity | 1m³ | ||
| Rotary angel of bucket | 205° | Slewing angle | 165° | ||
| Maximum digging radius | 5460mm | Maximum digging depth | 4425mm | ||
| Maximum loading height of bucket | 3495mm | Dumping range | 1640mm | ||
| Maximum digging height | 5360mm | Maximum digging height (With outriggers erected) | 5840mm | ||
| Bucket capacity | 0.3m³ | Maximum digging force (Bucket) | 63kN | ||
| Bucket arm digging force | 38kN | Lifting capacity at maximum horizontal extending | 16kN | ||
