TU12

Product description：

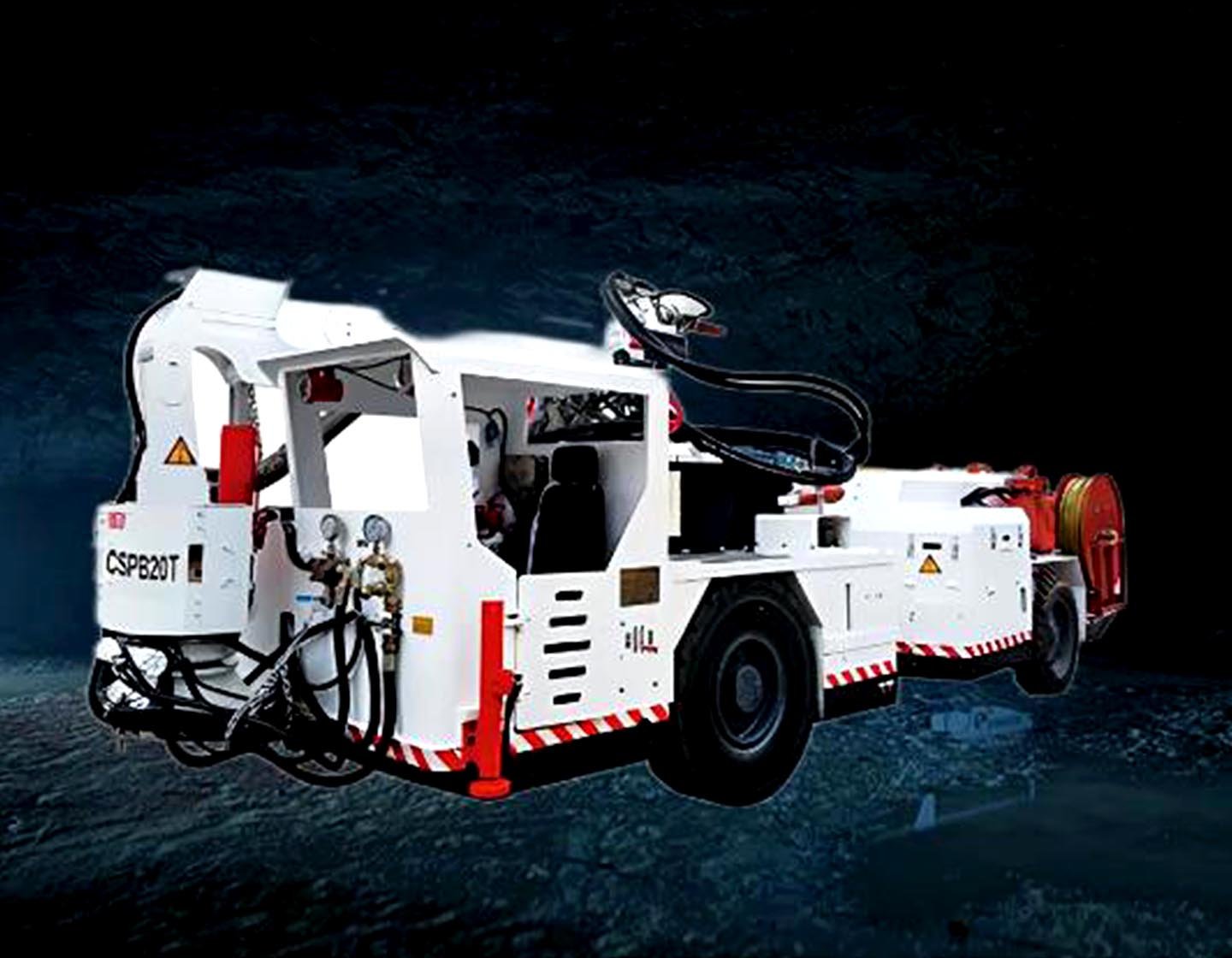

TMG utility vehicle products are underground mining auxiliary equipment developed for special purposes and targets, such as auxiliary transportation, auxiliary operation and auxiliary service in underground mines. They are are suitable for underground tunnel mines operation.The cab compartment is designed according to ISO ROPS/FOPS standards to ensure personnel safety. TMG series utility vehicle products covers:miner carrier, lift scissor,crane,logistics vehicle,scaler,concrete mixer,lube tank,maintenance vehicle, shotconcrete, etc with interchangeable chassis from 3 ton to 15 ton.

Product data

Utility Vehicle Model	TU12
Overall Dimension	10217x2216x2260 mm
Engine Power/Speed	129 kW (173 hp) @ 2200 rpm
Concrete Pump	31 m3/hr (40 yd3/hr)
Engine	Mercedes Benz OM904LA,or Cummins QSB4.5,or Mercedes Benz OM906LA
Transmission	Dana Clark 32000 powershift transmission
Axle	Enhanced capacity Carraro 28.60 planetary drive or XCMG Metroid axle package
Tires	12.00×20-28pr mine service tires
Operator Compartment	ROPS/FOPS certified compartment (SAE J/ISO 3449- 98, SAE J/ISO 3471, AS2294.2-97, and CSA B352.2-95)
Instrumentation	CAN-based engine/truck performance monitoring with on- screengaugesanddiagnostics for Benz
Steering	Electric joystick controlled articulated frame steering
