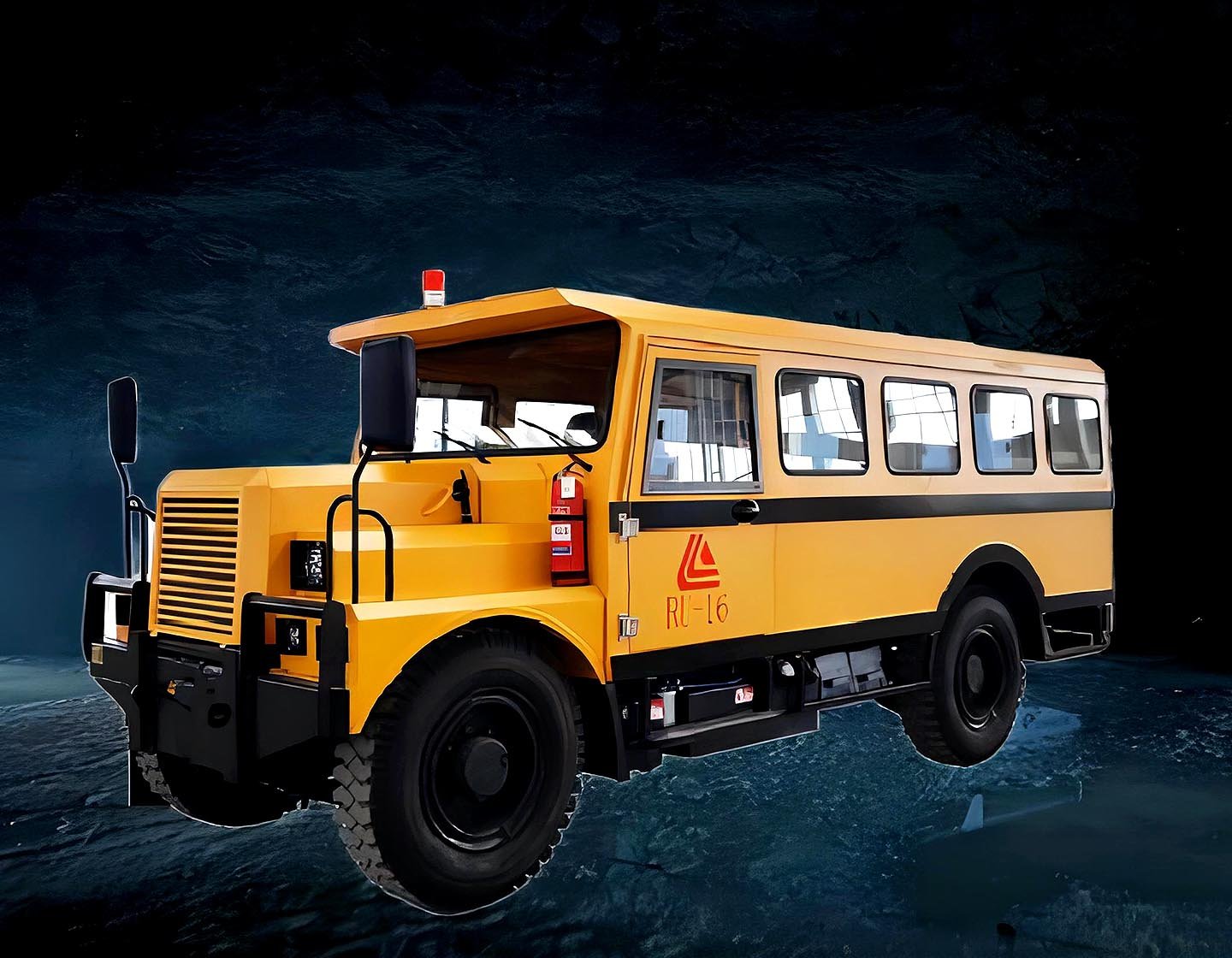

TMV308
Product description：
TMG utility vehicle products are underground mining auxiliary equipment developed for special purposes and targets, such as auxiliary transportation, auxiliary operation and auxiliary service in underground mines. They are are suitable for underground tunnel mines operation.The cab compartment is designed according to ISO ROPS/FOPS standards to ensure personnel safety. TMG series utility vehicle products covers:miner carrier, lift scissor,crane,logistics vehicle,scaler,concrete mixer,lube tank,maintenance vehicle, shotconcrete, etc with interchangeable chassis from 3 ton to 15 ton.
Product data
| Utility Vehicle Model | TMV308 |
| Outline Dimension | 6300x2200x2500 mm |
| Payload | 8000 kg |
| Turning Radius | 4100/6000 mm |
| Rear Passenger Cab | FOPS and Rops as with Drive Cab |
| Suspension of Passenger | Hydraulic-Pneumatic Suspension with Air suspension /Rear Steel plate |
| Max Gradeability | 25% (14°) |
| Wheelbase | 3200 mm |
| Operation Weight | 6800 kg |
| Max Traction Force | 96 kn |
| Brake System Type | Spring braking, hydraulic release |
| Brake System Design | Service brake, parking brake, emergency brake |
| Tire | 8.75-17/9.0-16 17 Ply |
