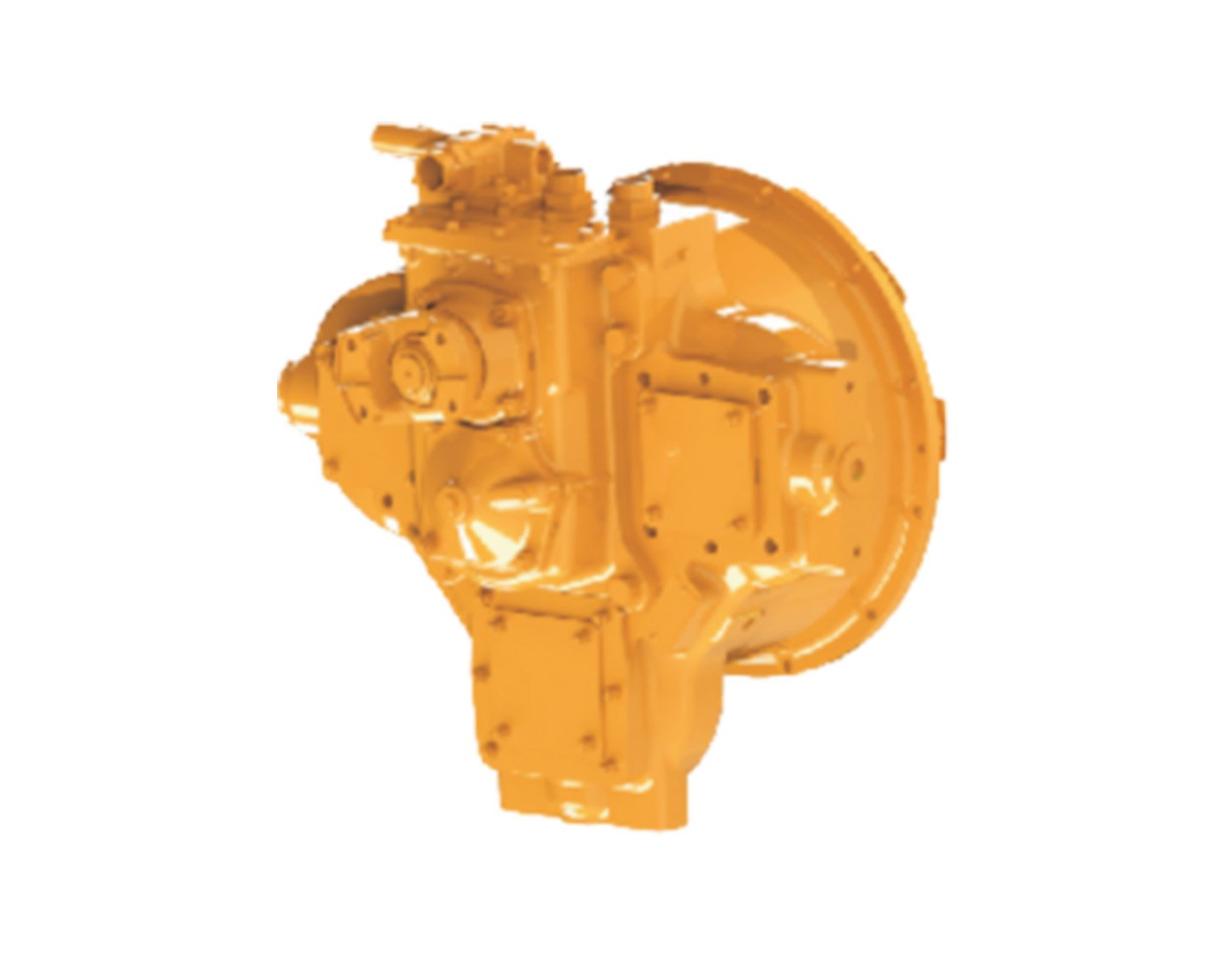

TORQUE CONVERTER RCV9672
Product description：
RCV9672 torque converter work with RC8420 transmission,with high advantages of:
Combination of torque converter and power take-off;
More torque transmission than similar torque converters;
There are many power take-off ports to meet the needs of multiple working conditions, and locking is optional;
The torque converter with the same type of flywheel housing has a large circulation circle.
Product data
| Product Model | RCVL9672 |
| Circular circle diameter mm | 450 |
| Max Input rotation speed rpm | 2400 |
| Matching power range KW | 353-588 |
| Zero speed torque ratio | 2.65 |
| Zero speed operating condition nominal torque MBg0 | 530 |
| Efficient working condition nominal torque MBg η | 460 |
| Maximum efficiency % | 88.5 |
| Weight kg | 335 |
