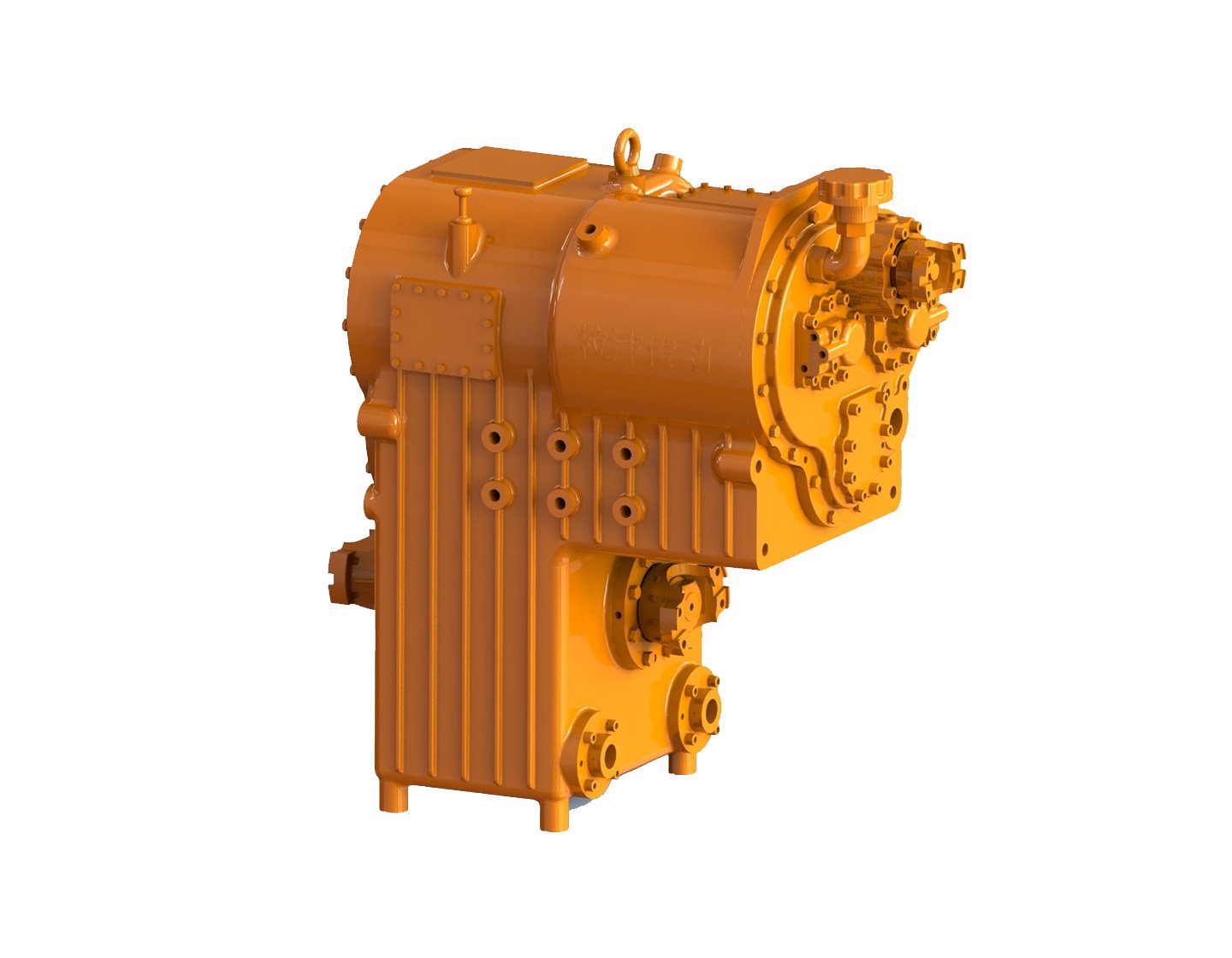

TRANSMISSION RC38420
Product description：
RC38420 transmission,work with RCV5502 torque converter, with high advantages of:
No calibration, full power shifting, no unboxing for five years
Advanced shifting control software technology, fully automatic shifting, no impact during shifting;
Front and rear output, driving front and rear axles, excellent off-road functionality;
Long and short axes will meet the needs of different working conditions;
Supports multiple installation modes such as integrated and split transmission and torque converter.
Product data
| Product Model | RC38420 | |
| Max input torque N.m | 2300 | |
| Max.input rotation speed rpm | 3000 | |
| Matching power range KW | 151-279 | |
| Gears | Gear 1 | 4.931 |
| Gear 2 | 2.352 | |
| Gear 3 | 1.349 | |
| Gear 4 | 0.803 | |
| Oil storage capacity L | 30 | |
| Weight KG | 505 | |
| Axle drop distance mm | 508 | |
