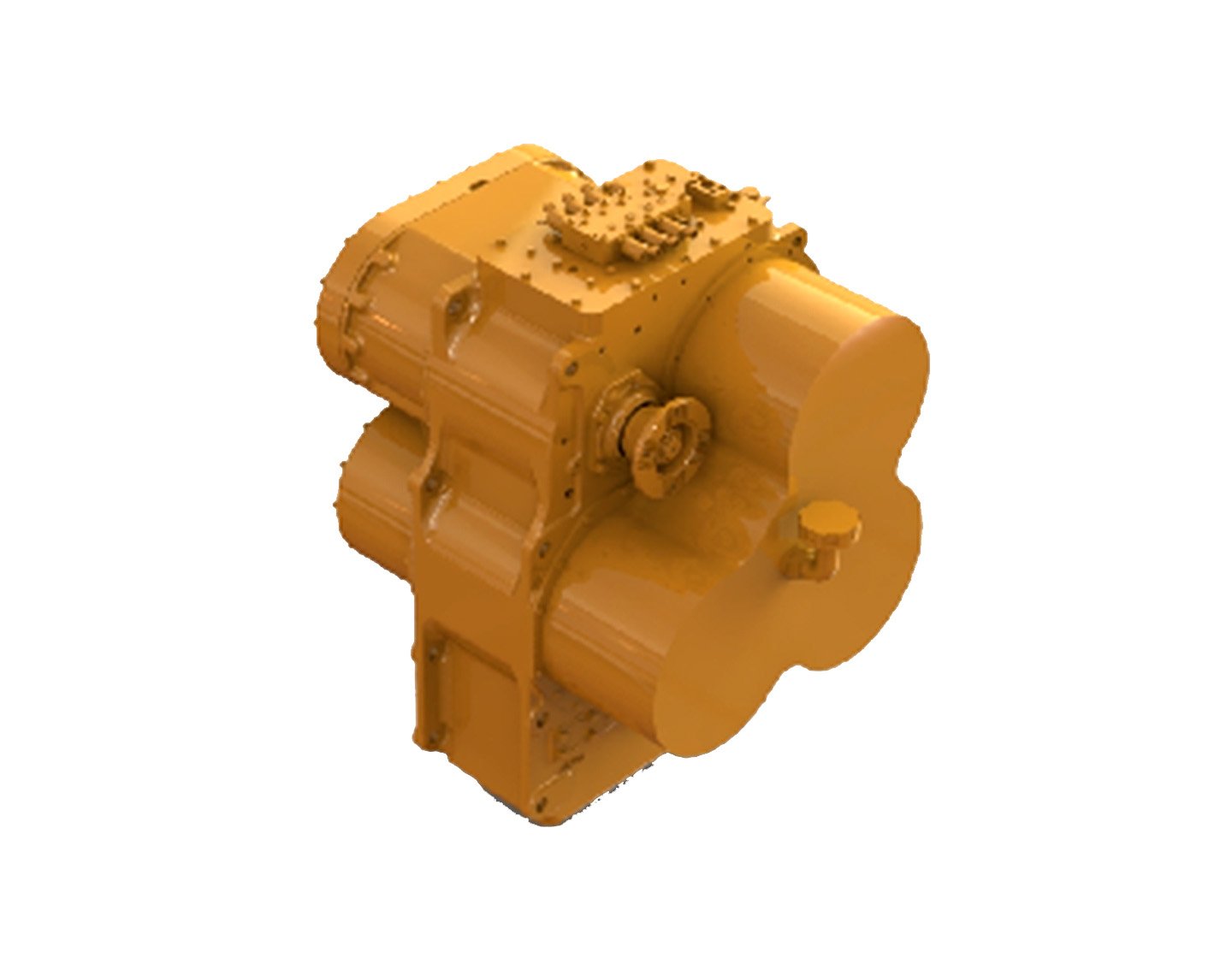

TRANSMISSION RC8420
Product description：
RC8420 transmission,work with RCV9672 torque converter, with high advantages of:
No calibration, full power shifting, no unboxing for five years
Advanced shifting control software technology, fully automatic shifting, no impact during shifting;
Front and rear output, driving front and rear axles, excellent off-road functionality;
Long and short axes will meet the needs of different working conditions;
Supports multiple installation modes such as integrated and split transmission and torque converter.
Product data
| Product Model | RC8420 | |
| Max input torque N.m | 4200 | |
| Max.input rotation speed rpm | 2200 | |
| Matching power range KW | 298-450 | |
| Gears | Gear 1 | 5.31 |
| Gear 2 | 2.71 | |
| Gear 3 | 1.4 | |
| Gear 4 | 0.71 | |
| Oil storage capacity L | 32 | |
| Weight KG | 1320 | |
| Axle drop distance mm | 605 | |
