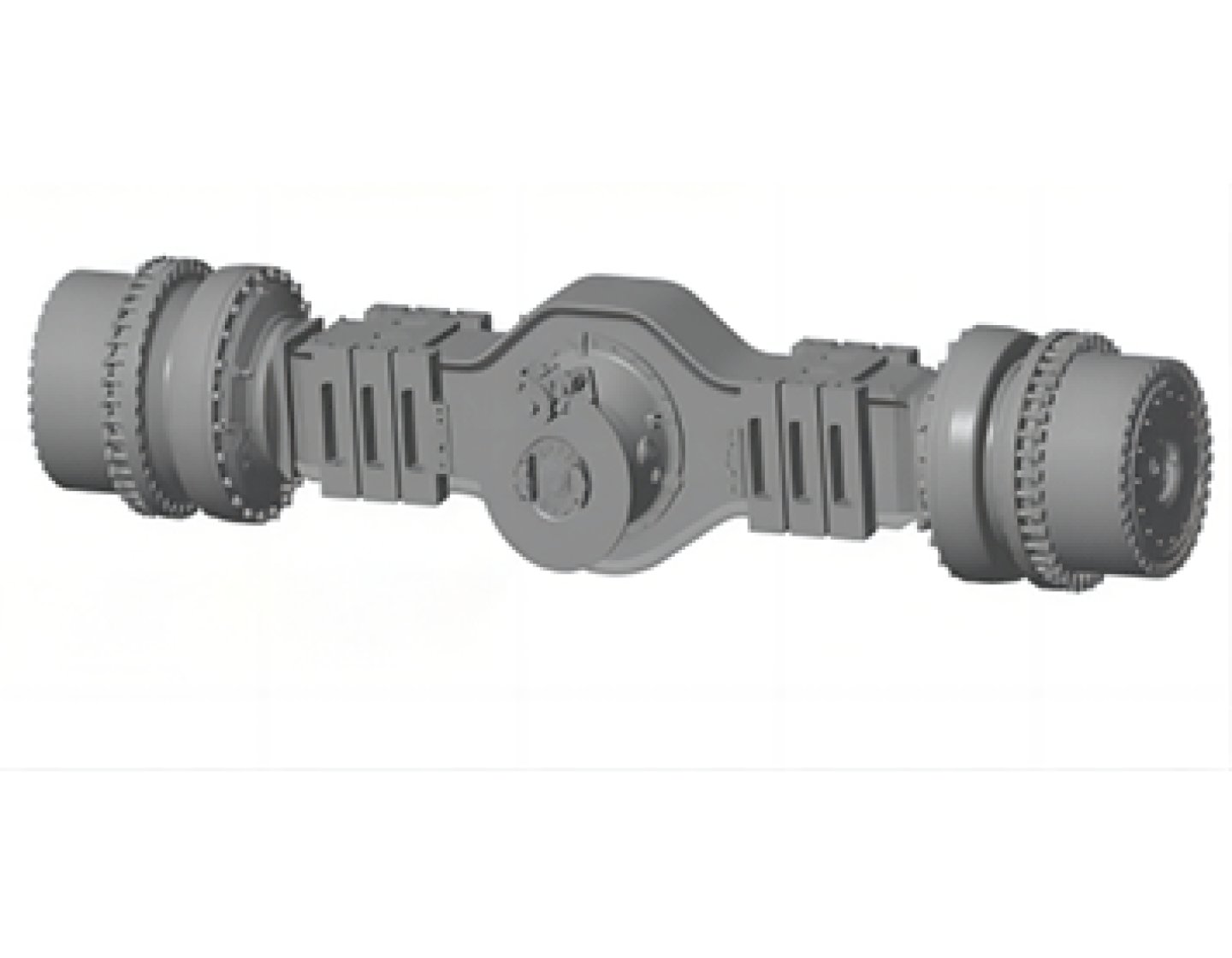

The TW0600 axle, for 12ton wheel loader, features a heavy-duty high-strength welded housing to handle heavy loads in complex conditions. It has an integrated wet brake with external cooling for stable braking and durability. The main reducer’s modular design allows customization, while the single-stage planetary wheel reducer ensures efficient transmission, stable power, and improved efficiency.
Welded Heavy Duty Axle Housing: Using High Strength Welded Steel
Wet Brake: With External Independence Cooling System
Main Reducer: With Hydraulic Differential Lock
Modular Design Method and Customization on Demand of Function and Interface
Wheel Reducer: With two Stage Efficient Planetary Gear Box
| Ratio | 32.82 |
| Weight | 3407kg |
| Max Dynamic Load | 425 kN（34km/h） |
| Max Static Load | 1775 kN |
| Brake Opening Pressure | 10MPa - 18 MPa |
| Parking Brake Torque | 5000 Nm |
| Max. Braking Torque per Hub End | 88000 Nm |
| At max. line pressure | 102 bar |
| Total Length | 3493 mm |
| Mounting Distance of Rim | 2825 mm |
| Locating Rabbet of Rim | φ550.8 mm |
| Rim Bolt | φ605 mm / M22×1.5 - 38 |
| Altitude | ≤ 3000 m |
| Environment Temperature | -40 °C - 50 °C |
