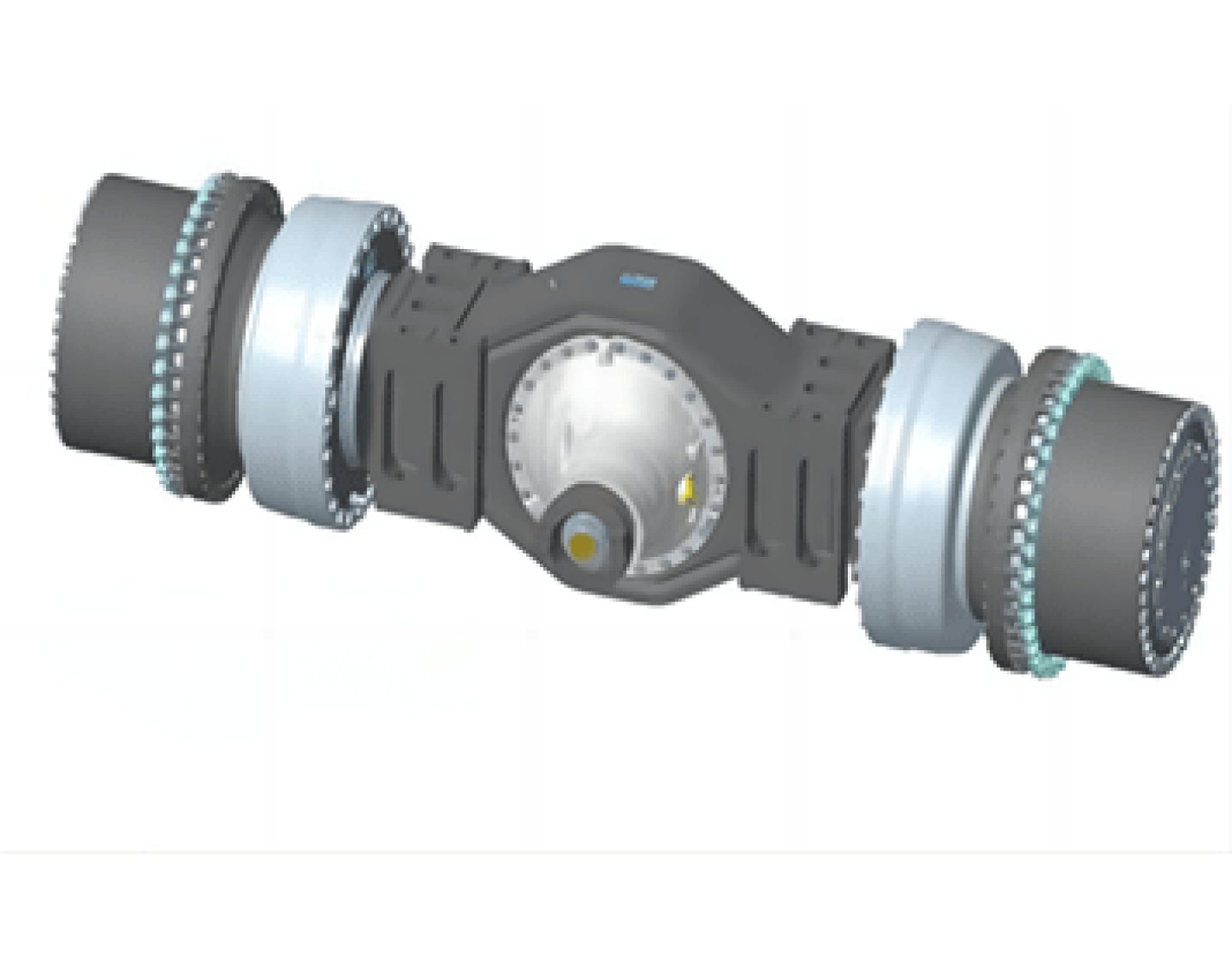

The TW0570 axle, for 8cbm LHDs, features a heavy-duty high-strength welded housing to handle heavy loads in complex conditions. It has an integrated wet brake with external cooling for stable braking and durability. The main reducer’s modular design allows customization, while the single-stage planetary wheel reducer ensures efficient transmission, stable power, and improved efficiency.
Welded Heavy Duty Axle Housing Using High Strength Welded Steel
Integrated Wet Brake With External Independence Cooling System
Main Reducer Modular Design Method and Customization on Demand of Function and Interface
Wheel Reducer With two Stage Efficient Planetary Gear Box
| Ratio | 32.68 |
| Weight | 3040kg |
| Max Dynamic Load | 460 kN（26km/h） |
| Max Static Load | 1775 kN |
| Brake Opening Pressure | 10.7MPa - 15 MPa |
| Dyn. Brake Torque (Initial/Max Wear) | 93000 Nm /76000 Nm |
| Sta. Brake Torque (Initial/Max Wear) | 67500 Nm /55000 Nm |
| Total Length | 2627 mm |
| Mounting Distance of Rim | 1978 mm |
| Locating Rabbet of Rim | φ550.8 mm |
| Rim Bolt | φ605 mm / M22×1.5 - 38 |
| Altitude | ≤ 3000 m |
| Environment Temperature | - 25 °C - 45 °C |
| Relative Humidity | ≤ 90% |
