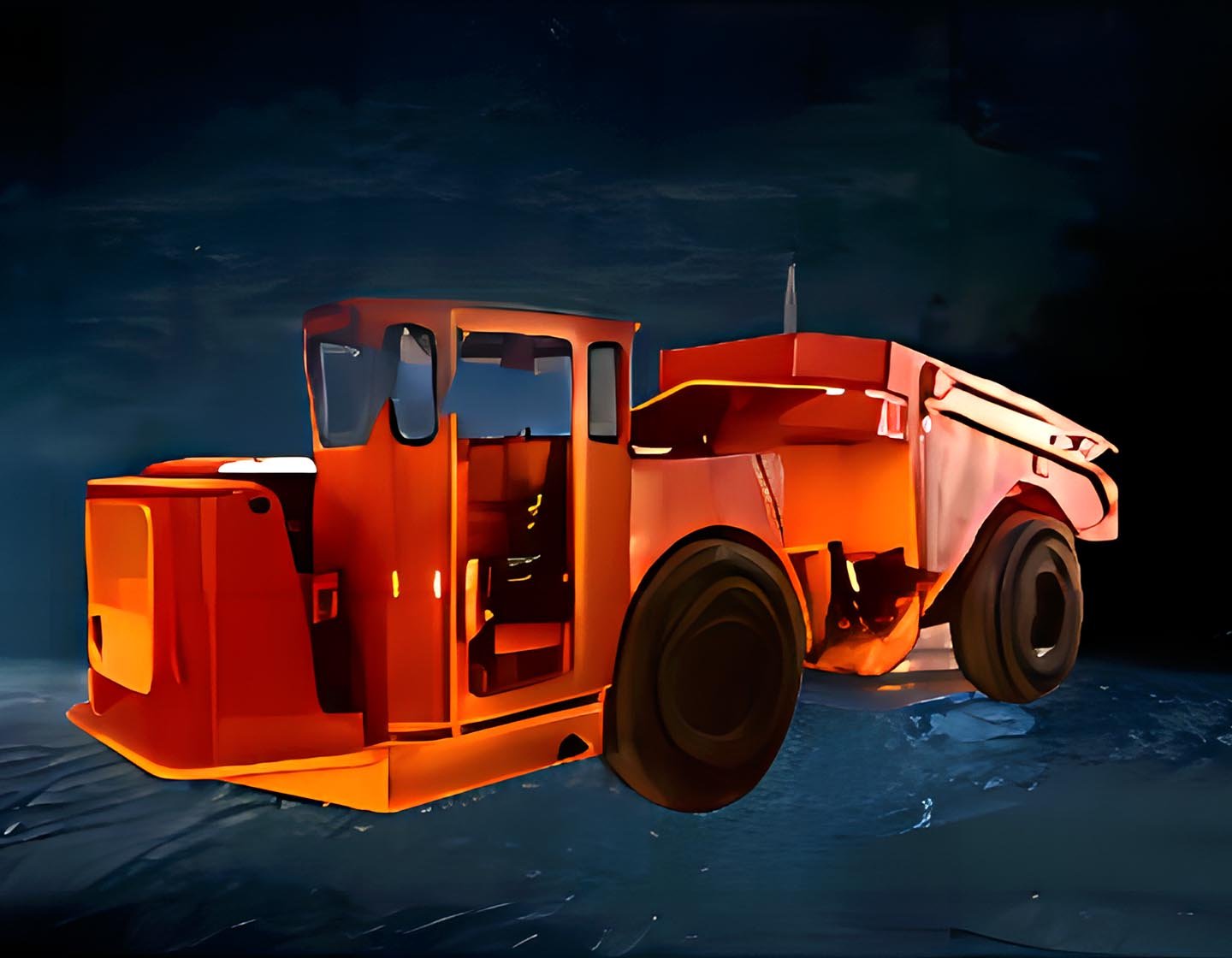

The TT312 underground mining truck is an efficient transportation equipment designed specifically for underground mines, suitable for narrow tunnels and complex working environments. It adopts a compact structural design, with a load capacity of 12 tons, equipped with a low emission diesel engine, and has strong power and climbing performance. The key components are made of wear-resistant and corrosion-resistant materials to ensure the long-term operation of the equipment. Suitable for the short distance transportation needs of underground ores and waste materials such as metal mines, it is a core transportation tool for improving underground mining efficiency.
| Underground Mining Truck Model NO. | TT312 |
| Power Type | Diesel |
| Standard Box Volume | 6m³ |
| Payload | 12T |
| Rated Power | 112Kw @ 2300 RPM or 144 |
| Machine Weight(empty loading) | 12000 |
| Machine Weight(full loading) | 24000 |
| Overall Dimension | 7420 x 2048 x 2270 |
| Dump Height(mm) | 4126 mm |
| Inner Turning Radius | 3706 |
| Outer Turning Radius | 6255 |
| Engine (Brand Model) | DEUTZ BF6L914C/ BF4M1013EC |
| Engine Cooling Type | Air‐cool/Liquid‐Cool |
| Rated Power/Speed | 112Kw @ 2300 RPM or 144 |
| Transmission (Model) | DANA or Sinotrans |
| Axle Brake (Model) | Metriot - joint Venture |
