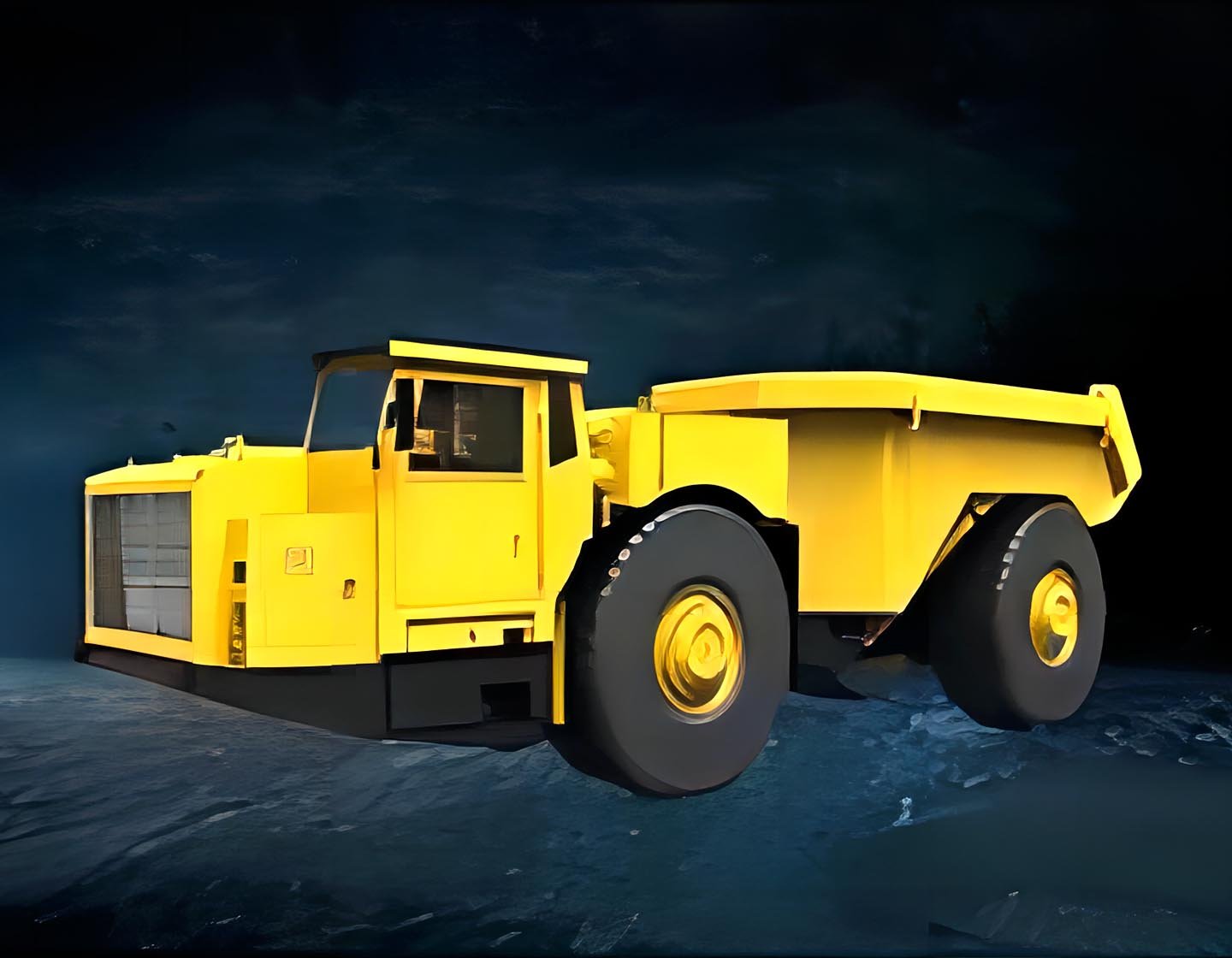

TT535
Product description：
TT535 Underground Mining truck work as the Diesel engine power with hydraulic drivetrian articulated configuration, trackless truck for the decline and ramp to ore pass or surface.It adopts super power Cummins engine,FOPS/ROPS cabin and robust & safe braking performance.
Product data
| Underground Mining Truck Model NO. | TT535 |
| Power Type | Diesel |
| Standard Box Volume | 21m³ |
| Payload | 35T |
| Rated Power | 354kW@1800rpm |
| Machine Weight(empty loading) | 35000 |
| Machine Weight(full loading) | 70000 |
| Overall Dimension | 11431x3146x3116 |
| Dump Height(mm) | |
| Inner Turning Radius | 4065 |
| Outer Turning Radius | 8757 |
| Engine (Brand Model) | Cummins QSX15 |
| Engine Cooling Type | Water cooled |
| Rated Power/Speed | 354kW@1800rpm |
| Transmission (Model) | Dana 8821 |
| Axle Brake (Model) | Dana 21D 3847 |
