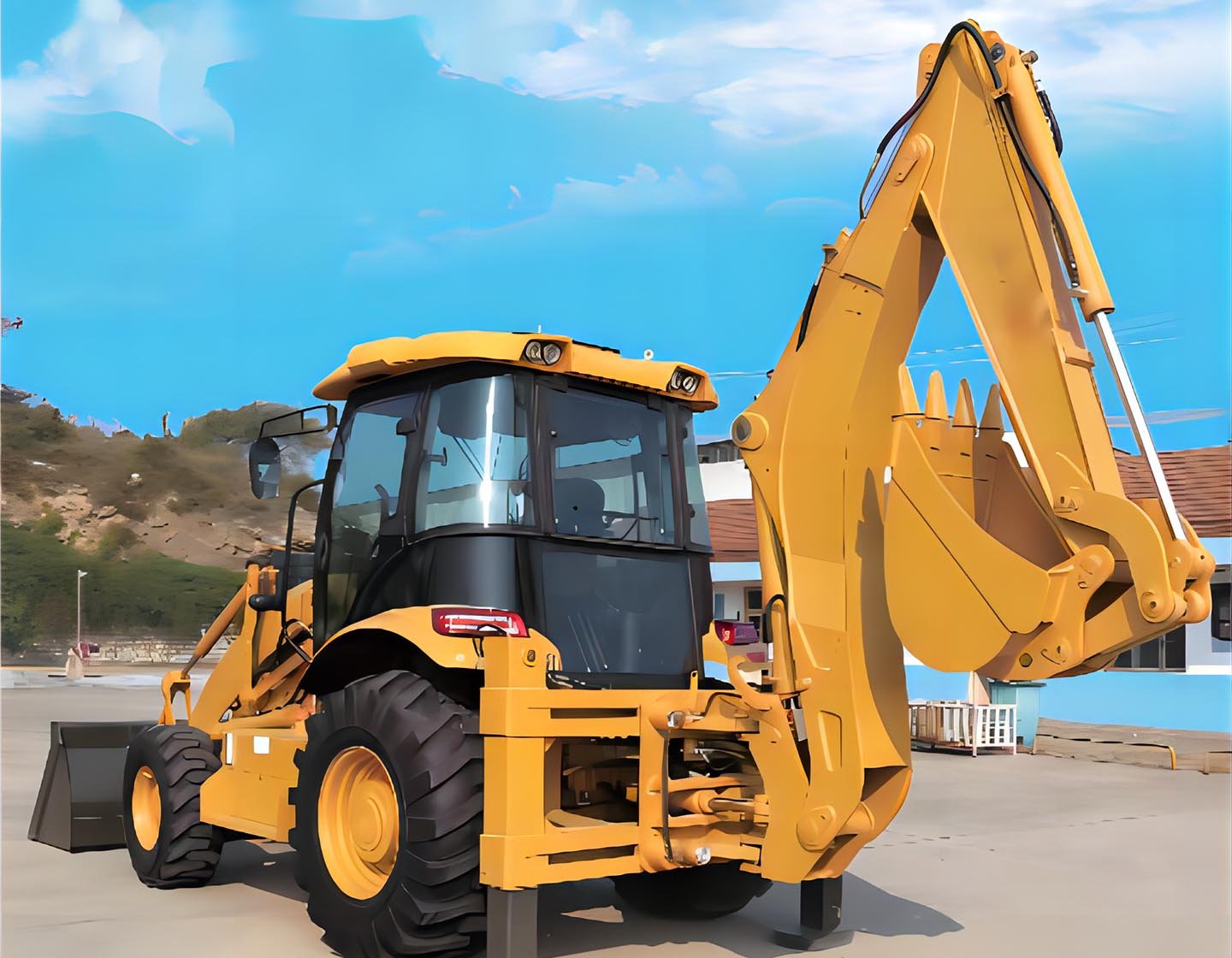

TMG series backhoe loader WM388 adopt integral frame, and the whole machine has good stability and is more suitable for excavation work.
The excavating working derice is side shift type,high strength and good structual stability;the loading end working device adopts eight-bar linkage mechamism.
Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.
The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated axle walking.
Mining, loading function all lead control, light and flexible, high operating efficiency.
A variety of accessories can be selected to complete a variety of construction operations.
TMG Engineering Equipment
1. TMG is committed to the production of underground mining equipment and engineering equipment, providing integrated solution of equipment and technology.
2. TMG -China Underground Mining Machinery And Engineering Equipment Manufacturer, High Efficiency,Safety,Reliable.
3. TMG backhoe loader series products are widely applied in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
4. TMG backhoe loader products family: WM388,WM388T,WZ30-25, high reliability,high performance.
| Backhoe Loader Model No. | 388 Backhoe Loader |
| Overall dimension (LxWxH) | 6230 x 2365 x 3752 mm |
| Wheel base | 2250mm |
| Operating weight | 8200kg |
| Min.Ground clearance | 300mm |
| Bucket capacity （m³） | 1.0m³ |
| Breakout force | 38KN |
| Dumping height | 2650mm |
| Dumping reach | 1025mm |
| Loading lifting capacity(kg) | 2500kgs |
| Loading cutting depth(mm) | 52mm |
| Backhoe capacity （m³） | 0.3m³ |
| Max.Digging depth(mm) | 4085mm |
| Digging slewing angle | 190° |
| Max. Tractive force | 39kN |
| Bucket digging force | 46.5kN |
| Rated power | 75kW/100HP |
| Tyre | 14-17.5/19.5L-24 |
