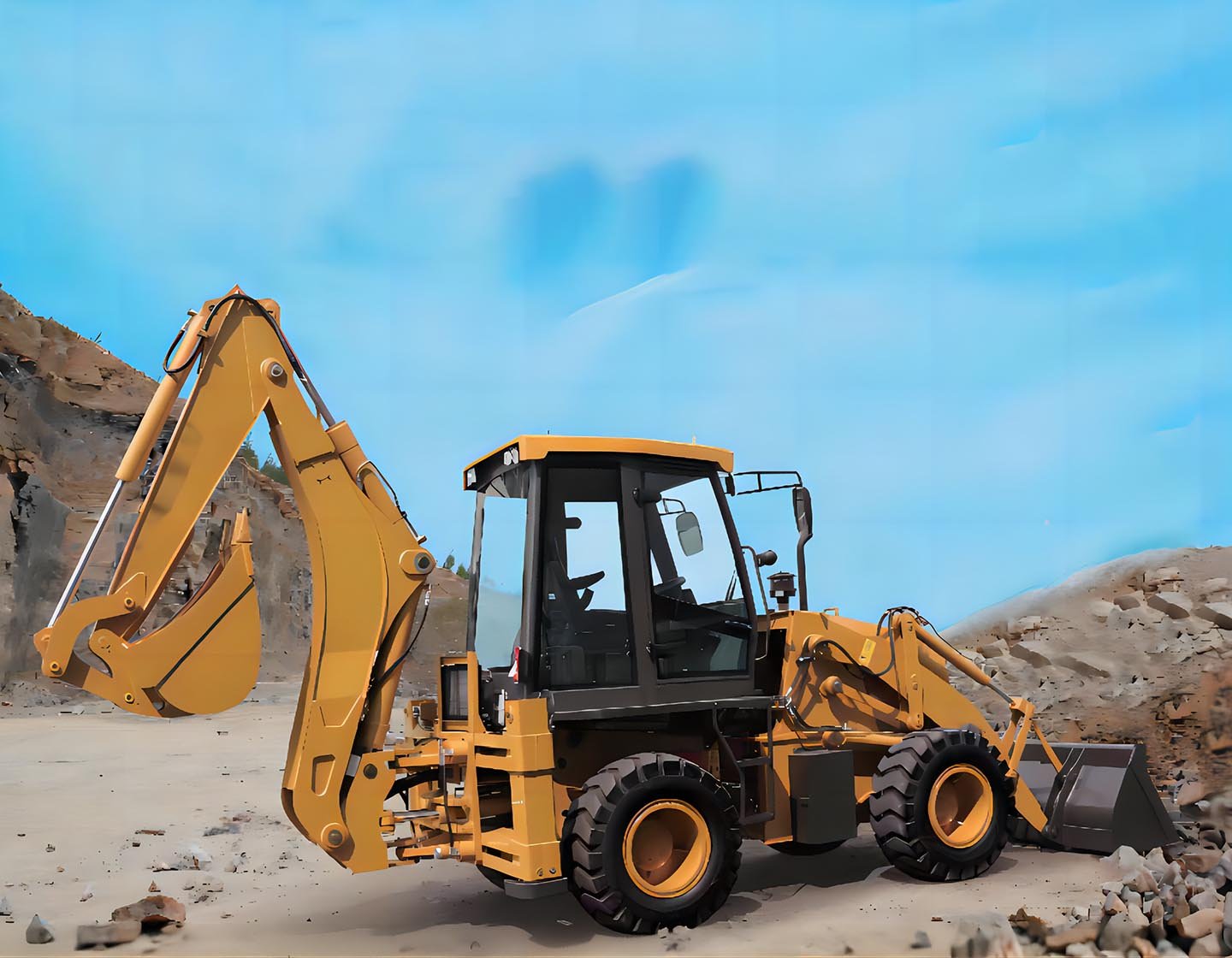

TMG series backhoe loader WC30-25 adopt central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading operation in the narrow site.
Both front and rear chassis adopt backhoe loader special chassis.The components are fully fixed in a high-strength integral structure.Their layout is reasonable,and they won’t be affectved by the impact force each other.They can be quickly replced or repaired.So they have good durability and excellent stability.
Loading device features refer to the world's advanced level of the British JCB 3 cx type structure, mining device features refer to John Deere 310 se type structure, beautiful shape, cab uses large area glass, good daylighting and vision, the driver operation more comfortable.
TMG Engineering Equipment
TMG is committed to the production of underground mining equipment and engineering equipment, providing integrated solution of equipment and technology.
TMG -China Underground Mining Machinery And Engineering Equipment Manufacturer, High Efficiency,Safety,Reliable.
TMG backhoe loader series products are widely applied in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations
TMG backhoe loader products family: WM388,WM388T,WZ30-25, high reliability,high performance.
| Backhoe Loader Model No. | WZ30-25 Backhoe Loader |
| Overall dimension (LxWxH) | 5910X 2268 X 3760mm |
| Wheel base | 2250mm |
| Operating weight | 7600kg |
| Min.Ground clearance | 300mm |
| Bucket capacity （m³） | 1.0m³ |
| Breakout force | 38KN |
| Dumping height | 2795mm |
| Dumping reach | 1048mm |
| Loading lifting capacity(kg) | 2500kgs |
| Backhoe capacity （m³） | 0.1-0.4m³ |
| Digging slewing angle | 190° |
| Max. Tractive force | 39kN |
| Bucket digging force | 46.5kN |
| Rated power | 75kW/102HP |
