Our loaders include 3 tons and 5 tons, which are technically improved products. Compared with market products, our loaders have the advantages of high carrying capacity, high working speed and long lifetime. Modular radiator is used to ensure 24-hour uninterrupted operation. Efficient and reliable hydraulic system ensures reliable and long term equipment with less maintenance. The bucket side blade is designed in arc shape to reduce the pile insertion resistance. The full load factor reaches 110%, reducing the scattering of materials during loading, unloading and transportation.

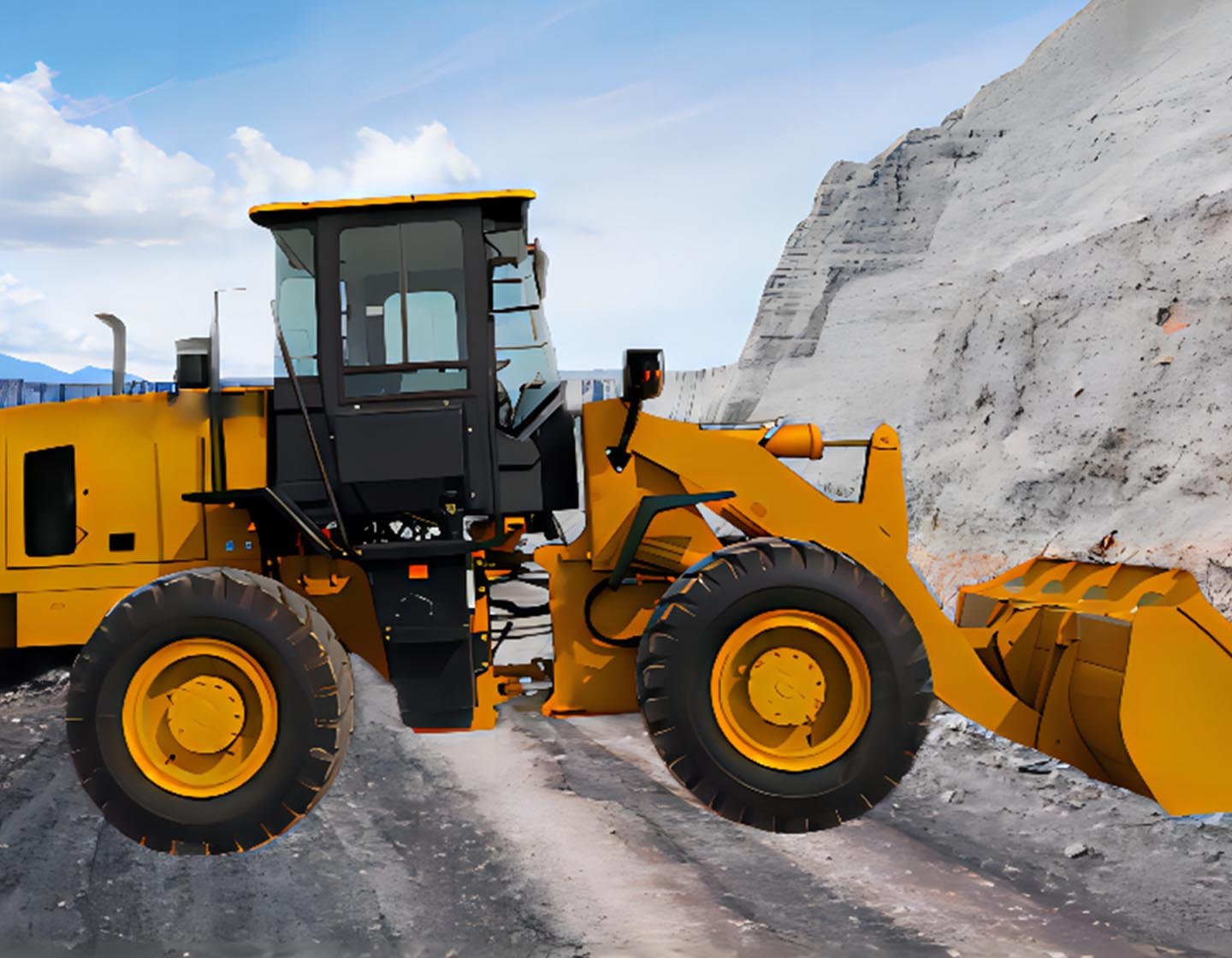

956 wheel loader has high service life,high load carrying capacity and high working speed; Modular radiator ensures 24 hours of uninterrupted operation; efficient and reliable hydraulic system makes machine work reliable and easy for maintenance.
| Wheel Loader Model No. | 956 Wheel Loader |
| Bucket capacity （m³） | 3m³ |
| Rated load | 5000kgs |
| Overall weight | 16500kgs |
| Overall dimension (LxWxH) | 8360x3050x3482mm |
| Wheel base | 3340mm |
| Wheel tread | 2250mm |
| Max breakout force | 170KN |
| Max grade ability | 30° |
| Max tractive force | 152KN |
| Max dump height | 3150mm |
| Max dump reach | 1250mm |
| Min turning radius | 6640 mm |
| Rated power | 162kw |
| Maximum torque | 860N.m |
| Maximum speed | 38km/h |
| Ground clearance | 460mm |
| Tyre | 23.5-25 |
