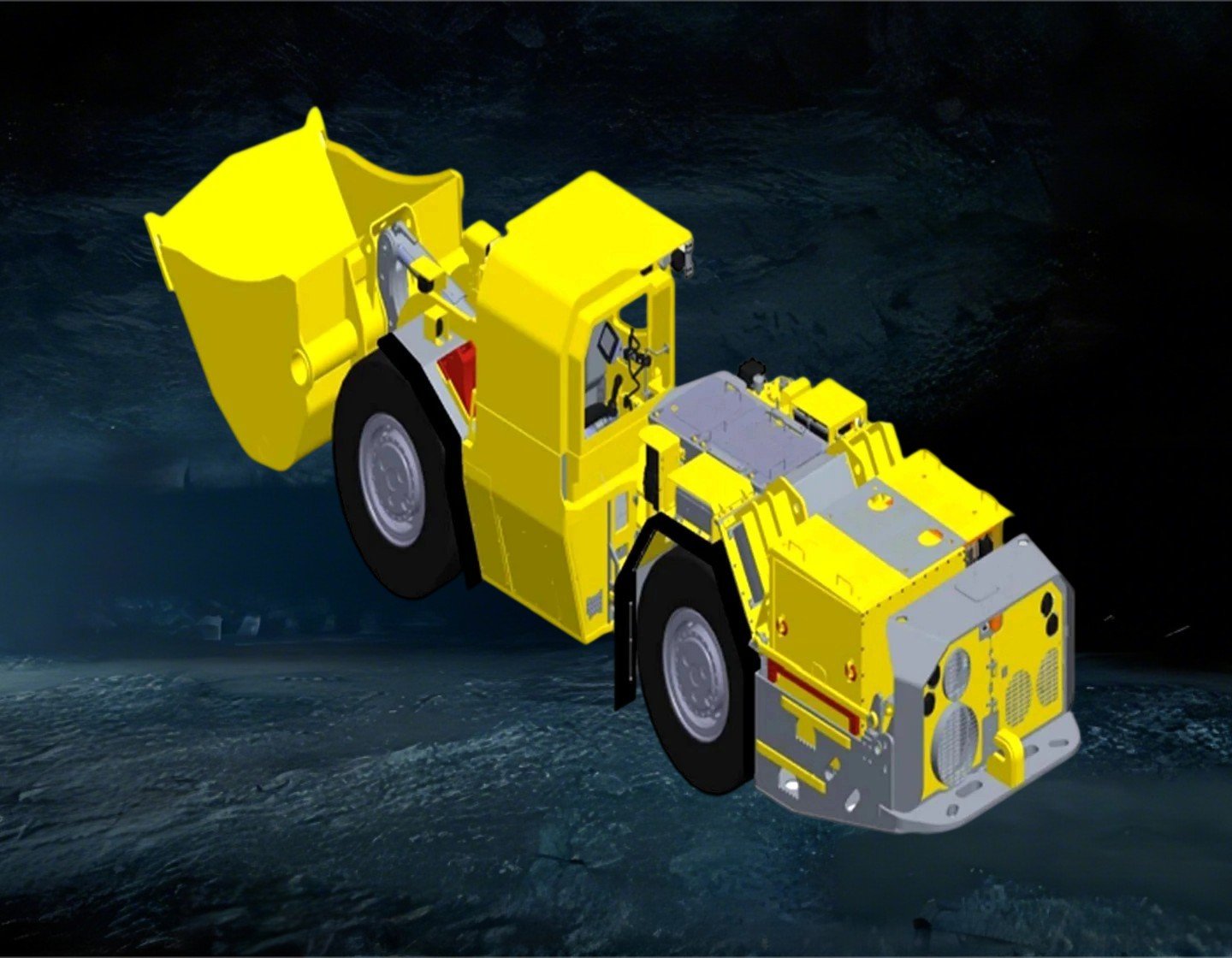

TL203B--1.5 cubic meter battery powered underground LHD is designed specifically for narrow and complex underground working environments, using advanced lithium batteries as the power source, completely eliminating the exhaust emissions problem of traditional fuel equipment and achieving green operations. Its loading capacity reaches 1.5 cubic meters, which can efficiently shovel, transport, and unload materials such as ores and rocks, greatly improving the production efficiency and safety of underground operations.
Pure Battery Drive
Stable Lithium Iron Phosphate (LiFePo4) battery, support the loaders to work 4~6 hours continuously.
Safe And Operator-friendly Design
Forced water-cooling system, to keep the battery stable.
Operator-friendly design instrument panel, and control system, easier for the operation.
Battery system has 3 layer protection, smoke alarm, and extinguishing system, to make the vehicle safer and more reliable.
Economic, High Efficiency
Brake energy recycling technology, highly deduces the energy waste, and improves the continuous working period.
Maximally match the diesel drive loaders components, easier for maintenance.
| Main Dimensions | |
| Overall Length | 7150 mm |
| Overall Width | 1760 mm |
| Width (without bucket) | 1400 mm |
| Overall Height | 2054 mm |
| Turning Radius | |
| Inner | 5777 mm |
| Outer | 3396 mm |
| Operating | |
| Total Operating Weight | 11,000 kg |
| Front Axle | 3460 kg |
| Rear Axle | 7540 kg |
| Loaded Weights | |
| Total Loaded Weight | 14,000 kg |
| Front Axle | 9,433 kg |
| Rear Axle | 4,567 kg |
| Capacities | |
| Tramming Capacity | 3991 kg |
| Break Out Force, Lift | 4899 kgf |
| Break Out Force, Tilt | 7031 kgf |
| Tipping Load | 9753 kg |
| Standard Bucket | 1.5 m3 |
| Bucket Motion Times | |
| Raising Time | 4.0 sec. |
| Lowering Time | 3.0 sec. |
| Dumping Time | 2.5 sec. |
| Vehicle Performance (Loaded) | |
| Tramming Speed | 5 / 15 km/h |
| Tractive Effort | 52 kN |
